Custom-manufactured fertiliser silos in Shea-Oak Log

Fertiliser Silos/Silos

Our custom-built silos have welded galvanised roofs with fully riveted wall sections and a completely galvanised bottom cone section. These constructions can also be supplied in a gas tight configuration using lid seals and safety pressure valves. As with all of our manufactured equipment, the accent is one of quality and durability at sensible prices.

Safety features include:

  • Roof safety rail
  • Ladder stiles curve over the roof
  • Base access
  • Lower ladder section is removable
  • Safety grill in the roof fill hatch
  • Roof fill hatch operated at ground level

Dimensions and capacities:

BAGS

TONS

CUM

DIAMETER (m)

HEIGHT (m)

60

5

7.1

2.438m

3.010m

100

8

10.93

2.438m

3.830m

130

11

14.95

2.438m

5.050m

150

12

18.12

3.048m

3.500m

200

16

24.4

3.048m

4.360m

250

20

30.54

3.048m

5.200m

320

26

37.86

3.700m

4.760m

410

34

46.9

3.700m

5.600m

547

45

67.61

4.343m

6.010m

650

54

79.46

4.343m

6.860m

770

64

86.44

4.343m

7.710m

866

72

97

4.850m

7.210m

989

82

109.97

4.850m

8.060m


Fertiliser silos

These specialist fertiliser silos are constructed using tried and tested materials, including galvanised panels for the roof and walls. The roof section is welded, whilst the sides are fully riveted to give safe load bearing qualities. Mounted upon a solid base frame of Duragal (RHS), they are designed to stay put for many years to come. The bottom cones are also galvanised and the inside of the silo is fully painted with acrylic film to protect the galvanised surfaces.

Safety features:

  • Roof safety rail
  • Ladder stiles curve over roof
  • Lower ladder section removable
  • Safety grill in roof hatch
  • Roof hatch operated at ground

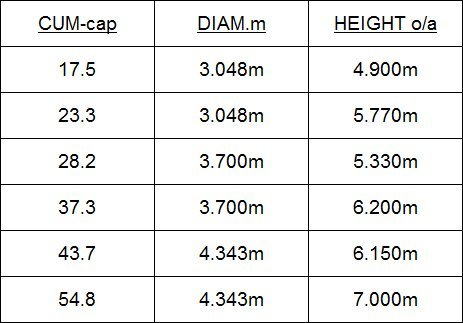

Approximate Capacity

Leske Engineering Table

Approximate bulk densities:

  • Urea 0.711kg/CUM
  • Super 1.149kg/CUM
  • 18-20 map 0.857kg/CUM
  • 19-13 0.820kg/CUM

Required auger lengths:

Operators should multiply the silo height by 1.8 for 40 degrees and by 1.6 for 45 degrees.
