CUSTOM-MANUFACTURED FERTILISER SILOS IN SHEA-OAK LOG

FERTILISER SILOS/SILOS

Our custom-built silos have welded galvanised roofs with fully riveted wall sections and a completely galvanised bottom cone section. These constructions can also be supplied in a gas tight configuration using lid seals and safety pressure valves. As with all of our manufactured equipment, the accent is one of quality and durability at sensible prices.

FERTILISER, FEED AND GRAIN SILOS

Grain & Feed Silos

Our custom-built silos have welded galvanised roofs with fully riveted wall sections and a completely galvanised bottom cone section. These constructions can also be supplied in a gas tight configuration using lid seals, air ration fans, safety pressure valves and auto siphoning kits for phosphine tablets. As with all of our manufactured equipment we pride ourselves on quality and durability at sensible prices.

Safety features include:

Roof safety rail

Ladder stiles curve over the roof

Base access

Lower ladder section is removable

Safety grill in the roof fill hatch

Roof fill hatch operated at ground level

Dimensions and capacities:

BAGS TONS CUM DIAMETER (m) HEIGHT (m)
60 5 7 2.438m 3.010m
100 8 10 2.438m 3.830m
130 11 14 2.438m 5.050m
150 12 18 3.048m 3.500m
200 16 24 3.048m 4.360m
250 20 30 3.048m 5.200m
320 26 37 3.700m 4.760m
410 34 46 3.700m 5.600m
547 45 67 4.343m 6.010m
650 54 79 4.343m 6.860m
770 64 86 4.343m 7.710m
866 72 97 4.850m 7.210m
989 82 109 4.850m 8.060m

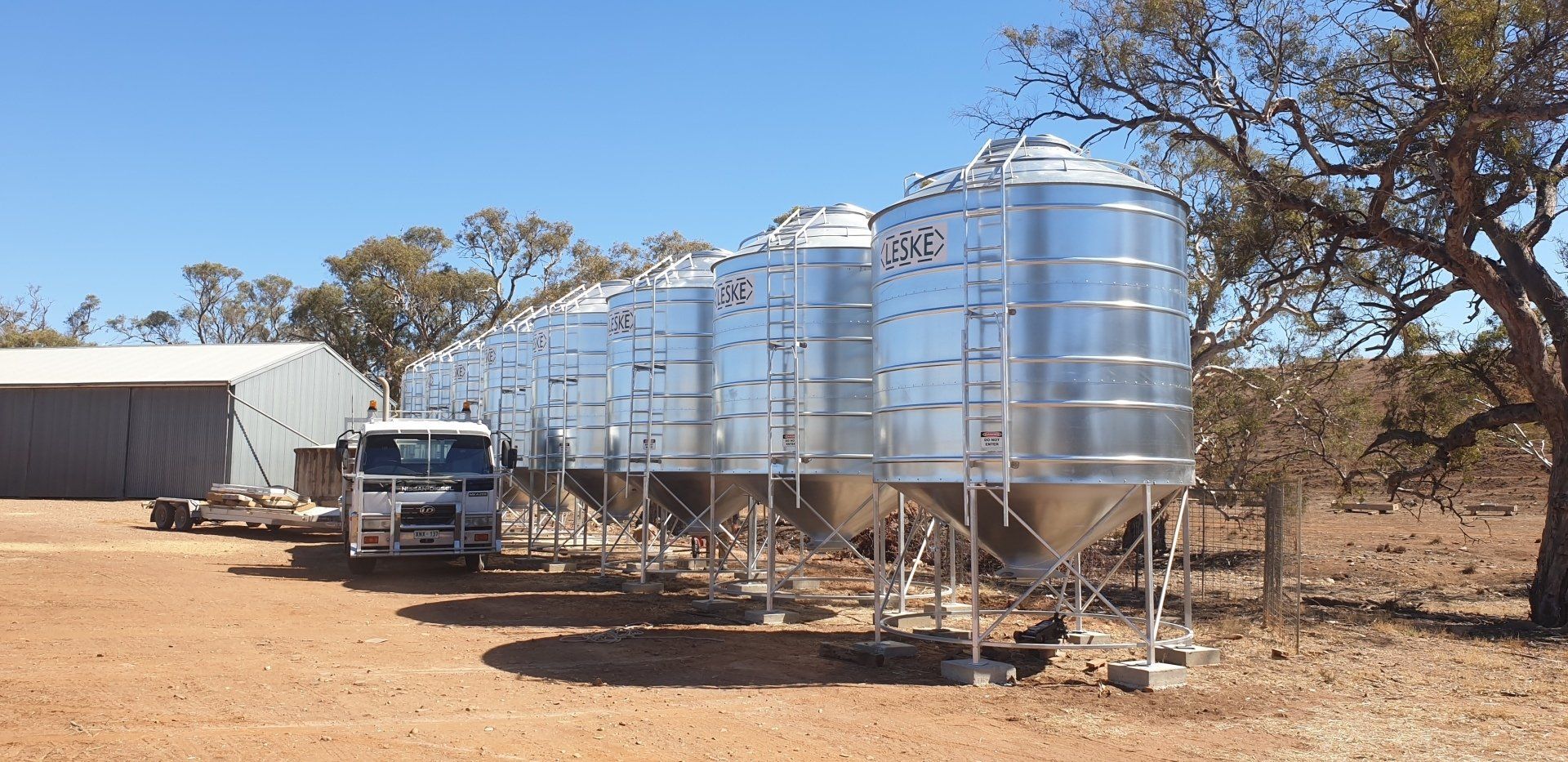

Fertiliser silos

These specialist fertiliser silos are constructed using tried and tested materials, including galvanised panels for the roof and walls. The roof section is welded, whilst the sides are fully riveted to give safe load bearing qualities. Mounted upon a solid base frame of Duragal (RHS), they are designed to stay put for many years to come. The bottom cones are also galvanised and the inside of the silo is fully painted with acrylic film to protect the galvanised surfaces.

Safety features:

Roof safety rail

Ladder stiles curve over roof

Lower ladder section removable

Safety grill in roof hatch

Roof hatch operated at ground

Approximate Capacity

CUM-cap DIAM.m HEIGHT o/a
17 3.048m 4.900m
23 3.048m 5.770m
28 3.700m 5.330m
37 3.700m 6.200m
43 4.343m 6.150m
54 4.343m 7.000m

Approximate bulk densities:

  • Urea 0.711kg/CUM
  • Super 1.149kg/CUM
  • 18-20 map 0.857kg/CUM
  • 19-13 0.820kg/CUM

Required auger lengths:

Operators should multiply the silo height by 1.8 for 40 degrees, by 1.6 for 45 degrees, and by 1.5 for 50 degrees.

NOTE:

We can also cut silo base legs to desired lengths to allow for tubulator augers or feed systems.
