Portable Field Bins

Field Bins for Any Application in Shea-Oak Log


Specifications on Our Range of Field Bins

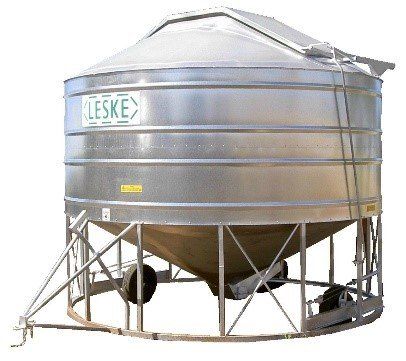

28 Ton (340 Bag) Standard bin

Diameter 4.343m, height 4.000m, cubic capacity 38cu-m, carrying capacity 28tons approx. (wheat).

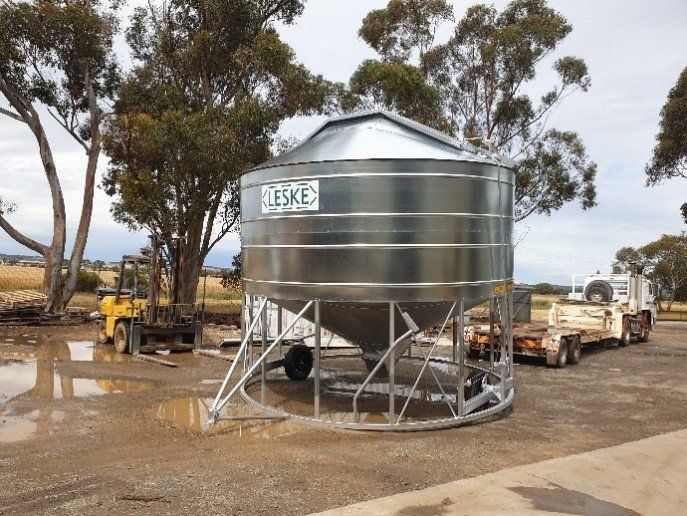

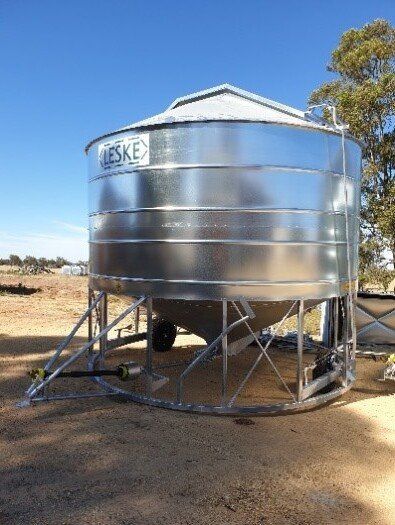

32 Ton (380 Bag) Standard bin

Diameter 4.343m, height 4.000m, cubic capacity 42.4cu-m, carrying capacity 32tons approx. (wheat).

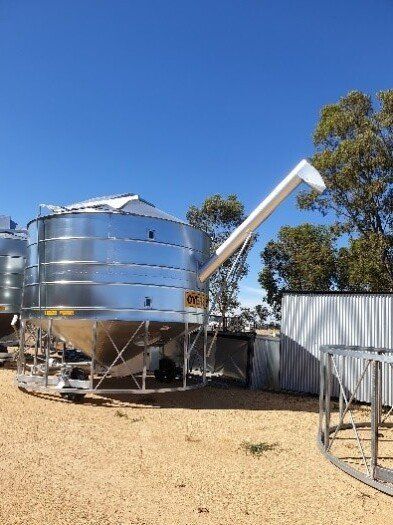

Auger

Auger where fitted 305mm (12 inch) diameter PTO driven.

Versions of Auger bin

There are 2 types of auger bins, standard where the bin and PTO has to be disconnected from the tractor before filling, and stay attached where the bin and PTO all stay coupled to the tractor. These bins have a collapsible draw bar and modified PTO. The draw bar catch must be released before the wheels are lowered to the ground. If the catch re-engages after lowering the first wheel, it must be released again before lowering the second wheel. When moving the bin, raise the wheels, lay the head of the handle on the ground under the draw bar as close as you can to the bin and lift the front of the bin until the catch engages. You are now in transport position.


55 Ton (672 Bag) Auger bin only

  • Diameter 5.97m, height 4.9m, cubic capacity 74cu-m, carrying capacity 55tons approx. (wheat).
  • Auger 380mm (15 inch) diameter PTO driven. Clearance under auger spout 4.3m. Always close the choke and unload the auger before stopping it.
  • Hydraulic operated choke fitted, external choke position gauge also fitted.
  • Approximate time to empty bin 10-12 minutes.
  • Sight glasses are fitted in the bin walls, 2 either side for chaser bin driver to see level.
  • Wheels to raise and lower bin all done hydraulically.
  • Wheel equipment 4 Toyota L/C 6 stud with load equalising on each pair.

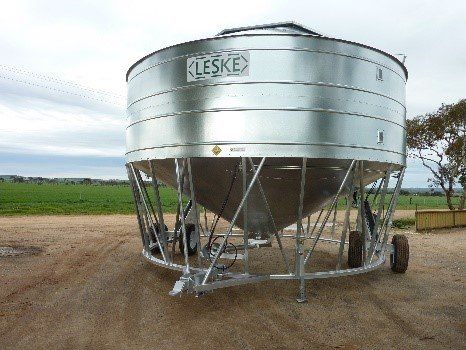

  • 55 Ton (672 Bag) Auger Bin - Shea-Oak Log, SA - Leske Engineering

    Slide title

    Write your caption here
    Button

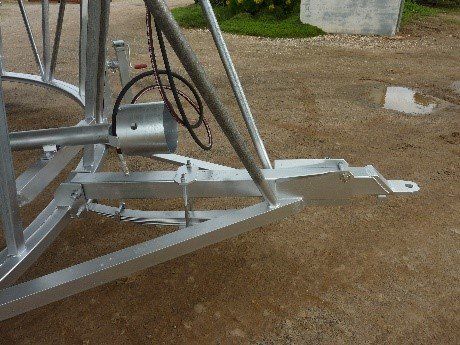

  • Auger Bin - Shea-Oak Log, SA - Leske Engineering

    Slide title

    Write your caption here
    Button

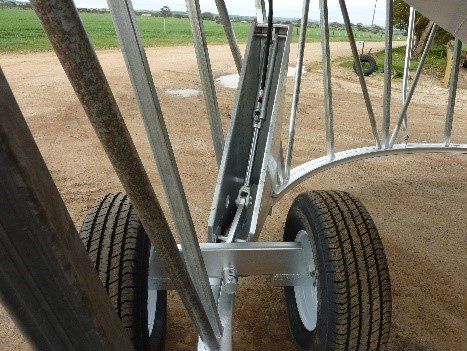

  • Auger Bin Wheels - Shea-Oak Log, SA - Leske Engineering

    Slide title

    Write your caption here
    Button

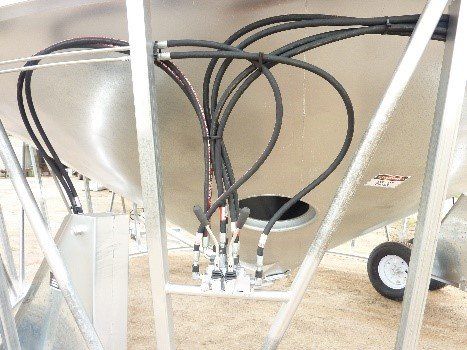

  • Auger Bin Close Up - Shea-Oak Log, SA - Leske Engineering

    Slide title

    Write your caption here
    Button

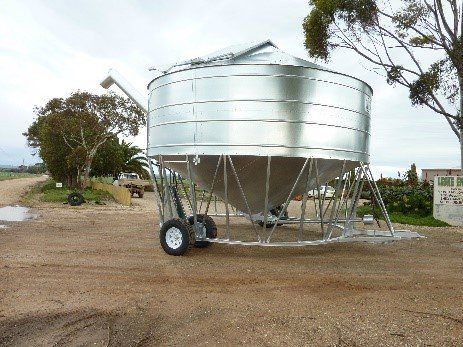

  • 55 Ton Auger bin - Shea-Oak Log, SA - Leske Engineering

    Slide title

    Write your caption here
    Button

Hydraulic system;

2 feeding lines from tractor, 1 way flow, if bin hydraulics are not working change feeding lines over at the tractor or push tractor control the opposite way. This must be able to flow all the time while the bin is in operation so you can control the choke and lift or lower wheels. When in transport position, put pin in draw bar to stop the spring bouncing while moving the bin. When at new location, remove the pin before lowering the bin.

This bin is a stay attached bin (PTO and draw bar stay connected to the tractor). Use a loose fitting draw bar pin to allow movement when lowering the bin.

The hydraulic relief valve has been set to lift the bin when empty only, non observance to this will void your warranty.


Product Warranty:

Leske Engineering Field Bins are warranted against all defects in material and workmanship, including all parts and accessories supplied with them as original equipment by the factory. This warranty is in force to the original user only for a period of 12 months. Failure due to abuse or abnormal use, is not covered.

Leske Engineering will replace, without charge, any original part that is returned to the factory and found to be defective under warranty terms.

Transportation costs in making replacement are not covered in this warranty.

Leske Engineering makes no warranty to parts adjusted or manufactured by other manufacturers. Neither will the business be liable for any delay caused by defects for consequential damages or for charges or expenses of any part which has been repaired or altered outside of our own factory.

This warranty is effective to the original purchaser only.
